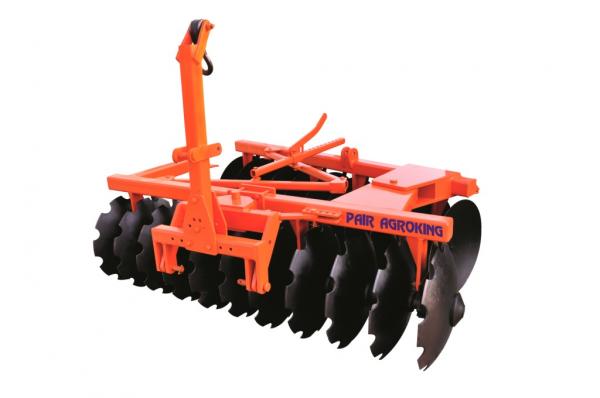

 Compact Model Disc Harrow
|
| |
-
Heavily Weighted Frame is used to provide stability for the preparation of soil and make it compatible with variety of Tractors.
-
Easy gang Adjustment to change the cutting depth and to get perfect level finish.
-
Gang Axles (Adjustable) upto 45°. Also Available with Hydraulic system
-
Easy to carry in mounted condition using tractor lift.
.
|
Description
|
PACMDH-16
|
PACMDH-18
|
PACMDH-20
|
PACMDH-22
|
PACMDH-24
|
|
Frame (mm)
|
100x7 T (Sq. Pipe frame )
|
|
Gang Bolt /Axle (mm)
|
30 & 40mm (Solid Sq. Rod)
|
|
No. of disc
|
16
|
18
|
20
|
22
|
24
|
|
Type of Disc
|
Notched Disc In front gang & plain Disc In rear gang
|
|
Disc Diameter (mm)
|
610x4.5 T (24”) or 660 x 6 T (26”)
|
|
Width of cut (mm Approx.)
|
1912
|
2128
|
2345
|
2562
|
2778
|
|
Distance Between Disc (mm)
|
228 mm
|
|
Bearing Hub
|
6
|
8
|
|
Weight (Kg. Approx)
|
725
|
805
|
880
|
970
|
1025
|
|
Tractor Power (HP)
|
50-60
|
65-75
|
80-90
|
100-110
|
115-135
|
|
|
